Why measure gloss?
Gloss is an aspect of the visual perception of objects that is as important as colour when considering the psychological impact of products on a
The Novo-Gloss Flex 60 has been designed specifically to measure low gloss surfaces. It features an additional measuring scale with a resolution 10 times greater than standard glossmeters. This increased resolution gives a far superior level of control for surface finishes. Custom measuring adaptors allow for repeatable measurement of parts with complex curves.

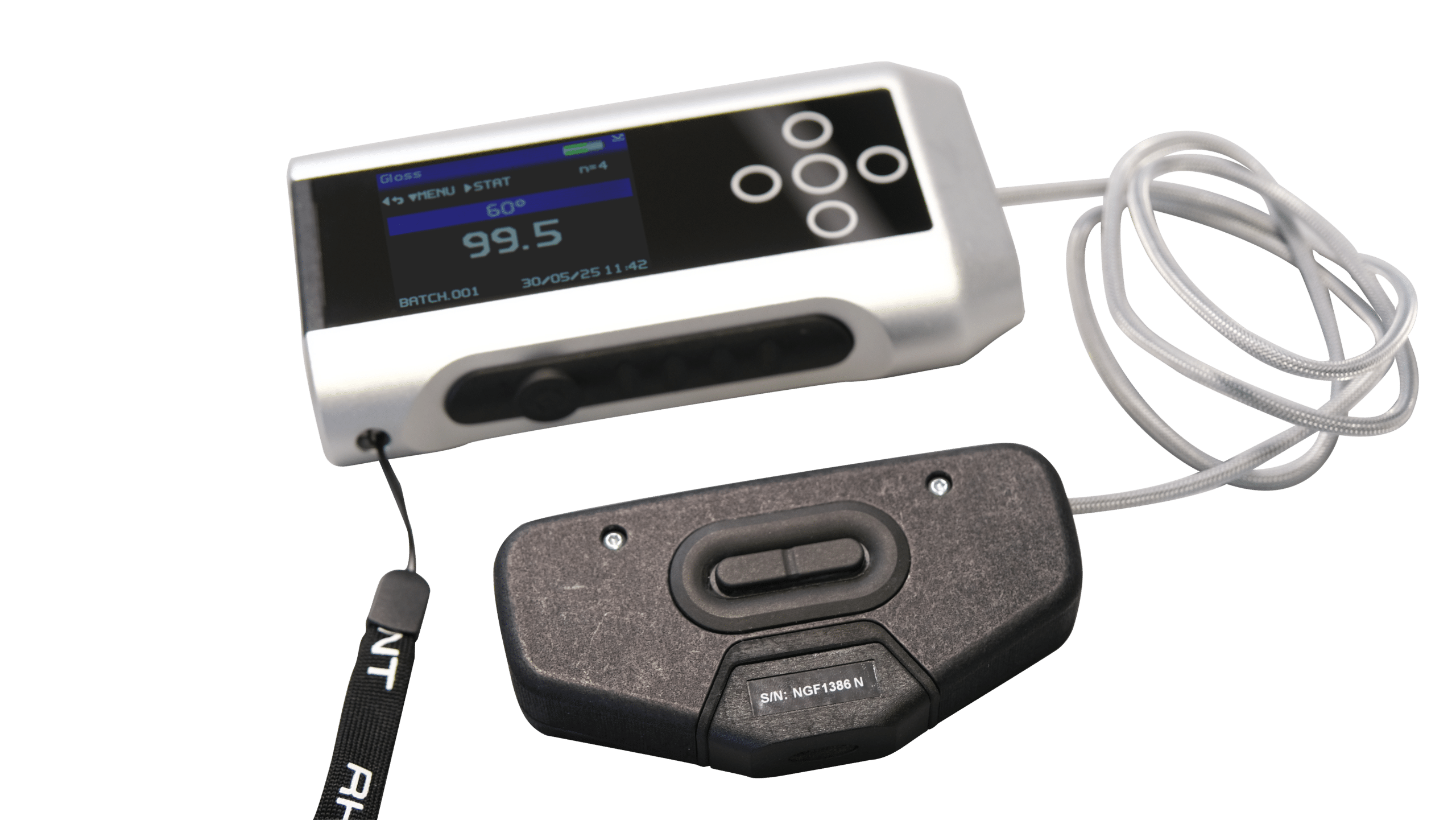

Suitable for all gloss surfaces, the Novo-Gloss Flex 60-X offers a cost-effective way of measuring 60 degree gloss ofsmall surface areas with curvature.
Both instruments comply to ISO 2813 and measurements made with these products are compatible with traditional glossmeters complying to these standards.
The Novo-Gloss Flex 60 and Flex 60-X can measure:
Gloss has been defined as ‘The attribute of surfaces that causes them to have a shiny or lustrous, metallic appearance’. The gloss of a surface can be greatly influenced by a number of factors. For example, the smoothness achieved during polishing, the amount and type of coating applied, or the quality of the substrate.
Manufacturers design their products to have maximum appeal: from highly reflective car body panels, to glossy magazine covers, or matt finish automotive interior trim.
This is especially noticeable where parts may be produced by different manufacturers or factories, but will be placed adjacent to one another, to create the finished product.
It is important therefore that gloss levels are achieved consistently on every product or across different batches of products.
Gloss can also be a measure of the quality of the surface, for instance a drop in the gloss of a coated surface may indicate problems with its cure, leading to other failures such as poor adhesion or lack of protection for the coated surface.
It is for these reasons that many manufacturing industries monitor the gloss of their products, from cars, printing and furniture to food, pharmaceuticals and consumer electronics.

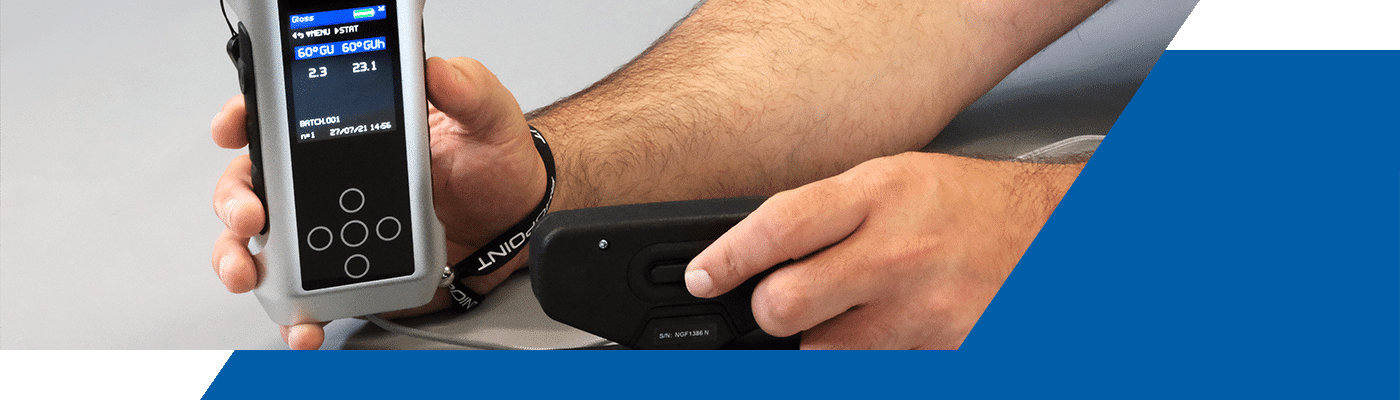

Designed for the measurement of small and curved surfaces.
Full colour easy to read screen,
display can be rotated from
landscape to portrait
Integrated measurement
button for single handed
operation
Measuring head
Easy to control and take measurements
User definable batch names and batch sizes for quicker and more efficient reporting
Single button push to initiate a defined number of measurements
The gloss measured by the Novo-Gloss Flex 60Â allows the user to quantify and control the surface textures that reduce the perceived quality of manufactured products.
Fast measurement of all parameters. Full on-board statistics with graphical trend analysis and reporting (Guh values not available on Flex 60-X model).
Measurement
Simultaneous measurement of all parameters, date and time stamped.
Statistics
Displays full statistics for the number of readings in the current batch.
Graphs
Graphical reporting for quick trend analysis.
Pass / Fail Parameters
Pass / Fail parameters can be defined for instant identification of non-conformances.
Batch names
User definable batch names and batch sizes for quicker and more efficient reporting.
The Quick Report App from Rhopoint is a quick and easy to use reporting package designed to enhance the functionality & reporting capabilities of the Rhopoint IQ.
| Operation | Full colour easy to read screen, Adjustable brightness, 6 button touch sensitive interface |
| Construction | Integrated calibration holders for error free calibration |
| Measurement | Fast measurement, Results batching with user definable names |
| Graphical Analysis | On board trend analysis |
| Statistical Analysis | Max, min, mean, S.D. |
| Power | Rechargeable lithium ion - 14,000 readings per charge |
| Memory | 8MB = 2950 readings |
| Measurement Area | ||
|---|---|---|
| 60° | 6mm x 12mm | |
| Operating Temperature | 15 - 40° C (60 - 104° F) | |
| Humidity | Up to 85%, non condensing | |
| Dimensions & Weights | ||
|---|---|---|
| Instrument | 80 (H) x 150 (W) x 35mm (D), 392g | |
| Measurement head | 60 (H) x 110 (W) x 28mm (D), 109g | |
| Packed Weight | 1.6kg | |
| Packed dimensions | 110 (H) x 280 (W) x 220 (D) | |
| Commodity code | 9027 5000 | |
| GU | * GUh | ||
|---|---|---|---|
| Measurement range | 0 - 125 GU | 0 - 125 GUh (0 - 12.5 GU) | |
| Resolution | 0.1 GU | 0.1 GUh (0.01 GU) | |
| Repeatability | ±0.2 GU | ±0.5 GUh (0.05 GU) | |
| Reproducibility | ±0.5 GU | ±2.0 GUh (0.2 GU) | |
| Standards | ISO 2813, ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, JIS K 5600-4-7 | ||
| Order Codes | ||
|---|---|---|
| Novo-Gloss Flex 60 | A4000-020.1 | |
| Customer adaptor (requires drawing of the part to be measured in .dxf format) | M4000-505 | |
Free extended 2 year warranty: Requires registration at www.rhopointinstruments.com/help-services/forms-feedback/instrument-registration/ within 28 days of purchase. Without registration, 1 year standard warranty applies.
Guaranteed for the life of the instrument.
Fast and economic service via our global network of accredited calibration and service centres. Please visit www.rhopointinstruments.com/help-services/calibration-servicing/ for detailed information.
| Novo-Gloss Flex 60 | Novo-Gloss Flex 60-X | |
|---|---|---|
| Low gloss standard | ✓ | - |
| High gloss standard | ✓ | ✓ |
| Standard measuring adaptor | ✓ | ✓ (fixed) |
| Steel surface measuring adapter | ✓ | - |
| Calibration certificate for instrument and standards | ✓ | ✓ |
| USB data cable | ✓ | ✓ |
Gloss is an aspect of the visual perception of objects that is as important as colour when considering the psychological impact of products on a
High Gloss >70 GU If measurement exceeds 70 GU at 60°, change test setup to 20° Medium Gloss 10 – 70 GU Low Gloss
RSpec is the peak reflectance measured over a very narrow angular band in the specular direction (+/-) 0.0991º. RSpec is very sensitive to any texture
