Why measure gloss?
Gloss is an aspect of the visual perception of objects that is as important as colour when considering the psychological impact of products on a
$2,460

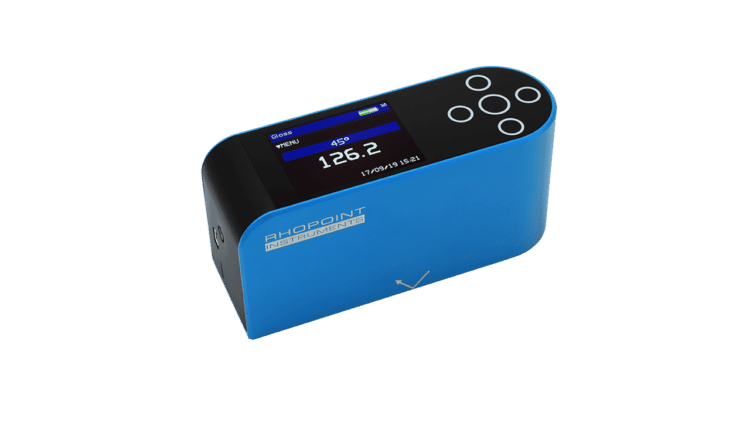

The Novo-Gloss 45° gloss meter is suitable for measuring gloss of ceramics, metal manufacturing and plastic films.
Gloss has been defined as ‘The attribute of surfaces that causes them to have shiny or lustrous, metallic appearance.’
Manufacturers design their products to have maximum appeal: from highly reflective car body panels to glossy household appliances or matt finish automotive interior trim.
This is especially noticeable where parts may be produced by different manufacturers or factories but will be placed adjacent to one another to create the finished product.
Gloss can also be a measure of the quality of the surface, for instance a drop in the gloss of a coated surface may indicate problems with its cure, leading to other failures such as poor adhesion or lack of protection for the coated surface.
The gloss of a surface can be greatly influenced by a number of factors, for example the smoothness achieved during polishing, the amount and type of coating applied or the quality of the substrate.
It is for these reasons that many manufacturing industries monitor the gloss of their products, from cars, printing and furniture to food, pharmaceuticals and consumer electronics.
It is important therefore that gloss levels are achieved consistently on every product or across different batches of products.

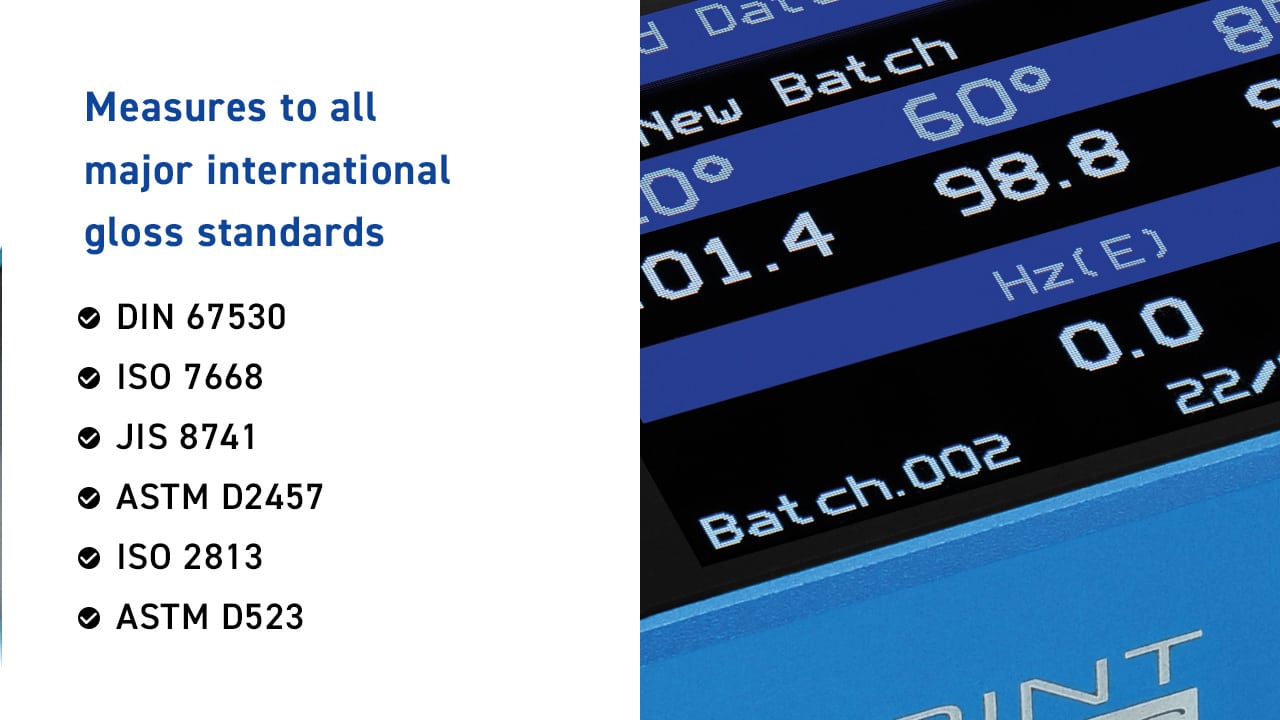

ISO 2813 and ASTM D523 (the most commonly used standards) describe three measurement angles to measure gloss across all surfaces.
Gloss is measured in gloss units (GU) and is traceable to reference standards held at NIST (USA).
All gloss levels can be measured using the standard measurement angle of 60°. This is used as the reference angle with the complimentary angles of 85° and 20° often used for low and high gloss levels respectively.
For improved resolution of low gloss a grazing angle of 85° is used to measure the surface. This angle is recommended for surfaces which measure less than 10GU when measured at 60°.
This angle also has a larger measurement spot which will average out differences in the gloss of textured or slightly uneven surfaces.
The acute measurement angle of 20° gives improved resolution for high gloss surfaces. Surfaces that measure 70GU and above at the standard angle of 60° are often measured with this geometry.
The 20° angle is more sensitive to haze effects that affect the appearance of a surface.
This measuring angle is in accordance with the ISO 2457 standard for the gloss measurement of plastic films and solid plastic parts as well as according to the standard ASTM C346 for the gloss measurement of ceramics
All gloss levels can be measured using the standard measurement angle of 60°. This is used as the reference angle with the complimentary angles of 85° and 20° often used for low and high gloss levels respectively.
For improved resolution of low gloss a grazing angle of 85° is used to measure the surface. This angle is recommended for surfaces which measure less than 10GU when measured at 60°.
This angle also has a larger measurement spot which will average out differences in the gloss of textured or slightly uneven surfaces.
The acute measurement angle of 20° gives improved resolution for high gloss surfaces. Surfaces that measure 70GU and above at the standard angle of 60° are often measured with this geometry.
The 20° angle is more sensitive to haze effects that affect the appearance of a surface.
To quantify haze, distinctness of image, reflected image quality and other surface texturing please consider the Rhopoint IQ.
Model | 20° Gloss HIGH GLOSS | 45° Gloss SPECIALTY ANGLE | 60° Gloss ALL GLOSS FINISHES | 85° Gloss LOW GLOSS FINISHES | Haze ASTM E430 | Haze ASTM D4039 |
---|---|---|---|---|---|---|
Novo-Gloss 60 | - | - | - | - | - | |
Novo-Gloss 45 | - | - | - | - | - | |
Novo-Gloss Trio | - | - | - | |||
Novo-Gloss 20/60/85 with Haze | - |
Simultaneous measurement of all parameters in GU or % reflectivity, date and time stamped.
Displays full statistics for the readings in the current batch.
Graphical reporting for quick trend analysis.
Pass / fail parameters can be defined for instant identification of non-conformances.
Automatic measurements at pre-defined intervals for easy checking of large surface areas.
User definable batch names and batch sizes for quicker and more efficient reporting.

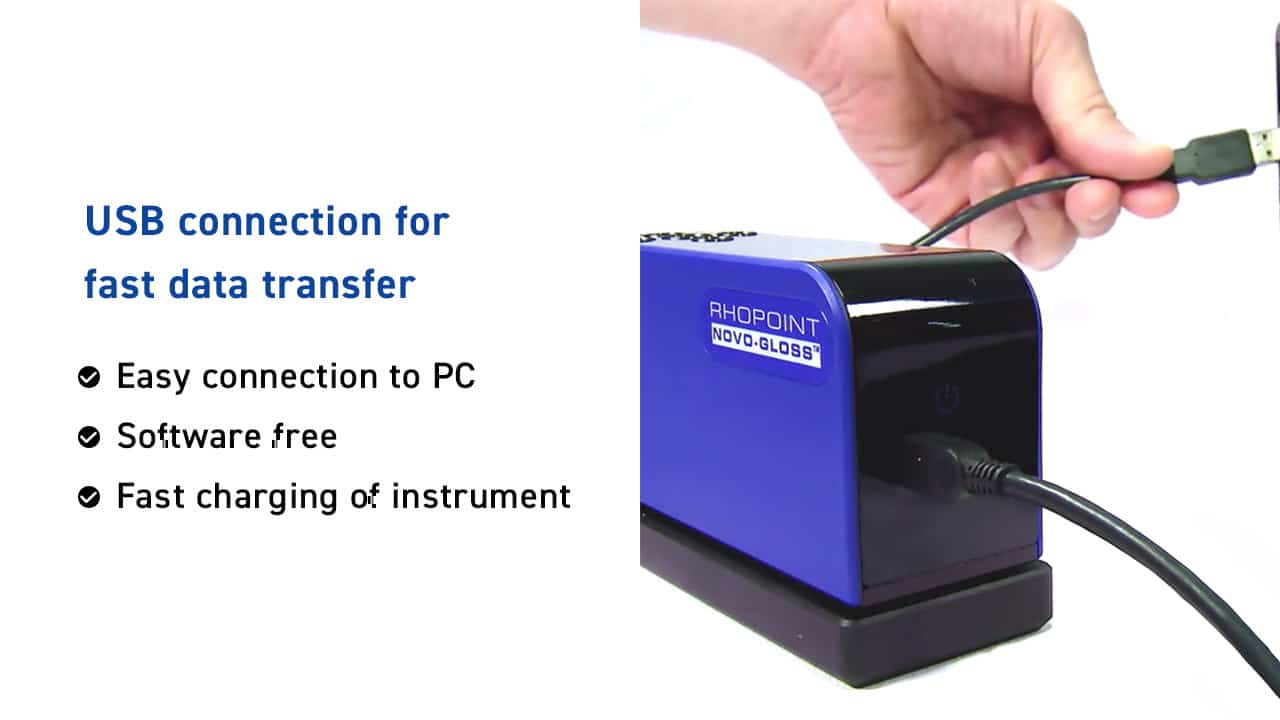

USB connection to PC instantly recognises the device as a drive location which facilitates the quick transfer of .CSV files using Windows Explorer or similar.
Instantly transmit measured readings directly to programs such as MS Excel on your PC / tablet to greatly simplify the reporting process.
The included software provides an easy means to measure, import and compare data and export the measurements into several other file formats, e.g. PDF, Excel® or CSV.
Instrument Information | ||
---|---|---|
Battery Type | Rechargeable lithium ion | |
Operation Time | 17+ hours | |
Readings per Charge | 20,000+ | |
Memory | 8MB, 2,000 readings | |
Operating Temperature | 15°C - 40°C (60°F - 104°F) | |
Operating Humidty | Up to 85% (non condensing) | |
Commodity Code | 9027 5000 |
Dimension & Weights | ||
---|---|---|
Dimensions | 65mm (H) x 140mm (W) x 50mm (D) | |
Instrument Weight | 390g | |
Packed Weight | 1.6kg | |
Packed Dimensions | 110mm (H) x 280mm (W) x 220mm (D) |
Order Codes | ||
---|---|---|
Novo-Gloss 60 | A4000-008.2 | |
Novo-Gloss Trio 20/60/85 | A4000-006.2 | |
Novo-Gloss 20/60/85 with Haze | A4000-009.2 | |
Novo-Gloss 45 | A4000-011.2 | |
Mirror Gloss Calibration Standard | B6000-101.1 |
45° Gloss | ||||
---|---|---|---|---|
Range | 0 - 60 GU | 60 - 1000 GU | ||
Repeatability | 0.2 GU | 0.2% | ||
Reproducibility | 0.5 GU | 0.5% * | ||
Resolution | 0.1 GU | |||
Measurement Area | 8mm x 12mm ellipse | |||
Standards | ASTM D2457 | ASTM C346 |
To ensure accurate and reliable results, Rhopoint Novo-Gloss Instruments are supplied with standards calibrated and certified according to ISO 17025 UKAS.
Free extended 2 year warranty: Requires registration at www.rhopointinstruments.com/help-services/forms-feedback/instrument-registration/ within 28 days of purchase. Without registration, 1 year standard warranty applies.
Guaranteed for the life of the instrument.
Fast and economic service via our global network of accredited calibration and service centres. Please visit www.rhopointinstruments.com/help-services/calibration-servicing/ for detailed information.
Included Accessories | ||
---|---|---|
Certificates: | Instrument calibration certificate ISO 17025 UKAS tile calibration certificate | |
Cables: | USB data & mains cable Wrsit strap | |
USB Containing: | Instruction manual Bluetooth data app Example Excel spreadsheets Novo-Gloss Multi Gauge software Instructional videos | |
Calibration Tile | High gloss calibration tile with cleaning cloth | |
Sample Positioning Templates | ||
Quick Start Guide |
