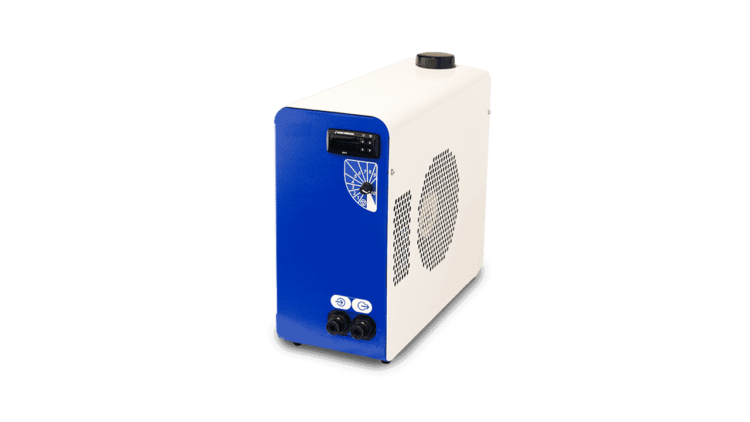

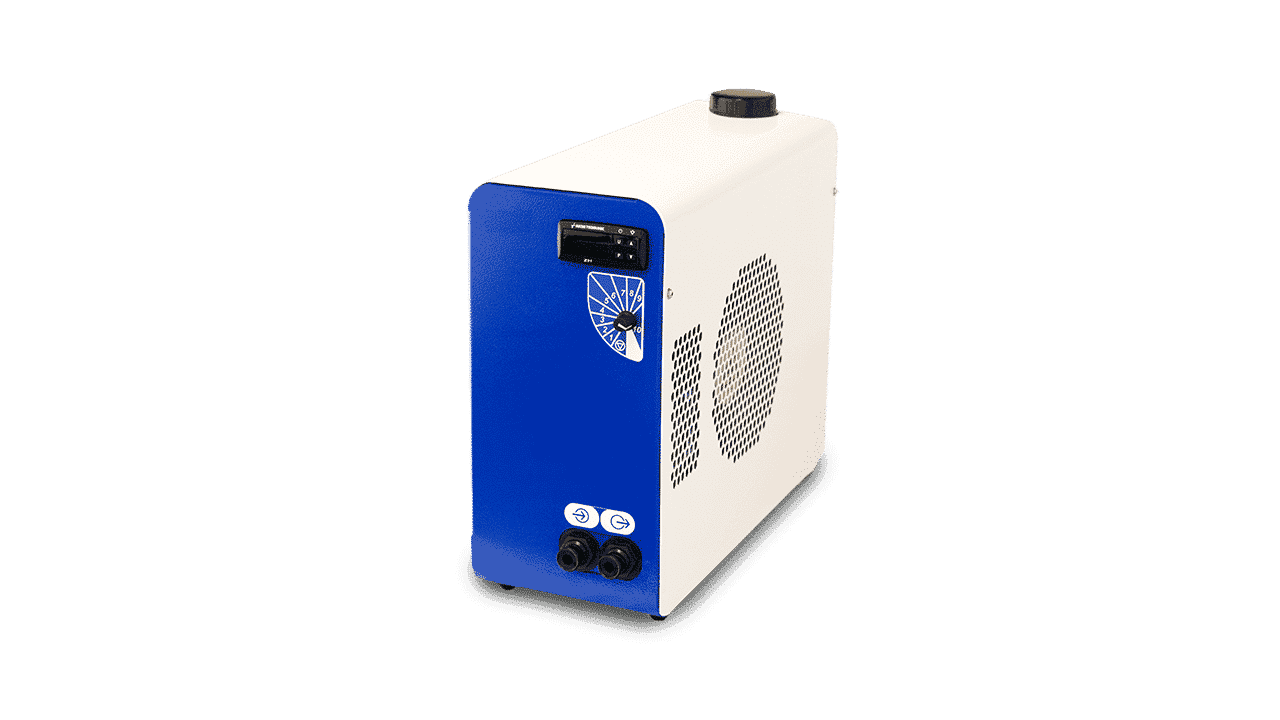

MFFT Chiller
Industries & Applications
  • Paints & Coatings

MFFT Chiller

  • Ultra-compact design
  • 480W Cooling Capacity (@17°C set point)
  • Plug in and use – No customer settings)
  • Low cost of purchase and operation
  • Ideal for OEM Applications

$4,800

Prices exclude local duties – Purchase through your local agent

Specifications

Physical Attributes
Dimensions380mm (H) x 180mm (W) x 435mm (D)
WeightDry 20kg
Wet 21kg
Noise Level64 dB(A) (optional manual adjustment)
Toolless AccessNo
Cooling Capacity0.5kW (setpoint 20°C, ambient 20°C)
Temperature Control Attributes
TechnologyVapor compression
Evaporator TechnologyBrazed plate heat exchanger
Duty at +20°C Ambient, Setpoint +20°C500kW
Duty at +20°C Ambient, Setpoint +15°C300kW
Refrigerant & ChargeR134a, 360g
Temperature Range (standard)+4°C to +35°C (setpoint dependent on load)
Temperature Range (extended)-10°C to +35°
Control MethodContinuous running, duty settable
Low temperature fridge cutoff
Temperature Stability (with constant load)‡0.1°C
Temperature ResolutionN/A
Maximum THR (Total Heat Rejection)850W
Ambient Air Temperature Range+35°
Water Circuit Attributes
System Volume0.64L
Pump TypeSanso 24VDC brushless centrif pump
1.9bar(d/h) 3L/min (o/f)
Pump Capability3.5L/min @1 bar
Pressure Control (settable pressure relief valve)N/A
Standard FittingsPushfit 12mm
Standard Chemical CompatibilityTap Water,
DI-water
Electrical Attributes
(90-264 Vac, 1-/2~ 50-60Hz) U-specYes, 2A@115Vac, 1A@230 Vac
L+N+E or L1+L2+E
Overcurrent Fault - cleared restart modeAutomatic
Safety Interlocks, Protections, Standards & Indicators
1st Party ApprovalsCE
3rd Party ApprovalsTBC
Empty Fluid Reservoir AlarmNot fitted
Half-full Fluid Reservoir IndicatorNot fitted
Full Fluid Reservoir IndicatorNot fitted
Low Fluid Flow AlarmNot fitted
Temperature Out of Range AlarmNot fitted
Compressor HP SwitchStandard, via compressor control PCB
Motor Thermal OverloadNot fitted
Emergency OffStandard, via fuse
Warranty Options2 year parts, 1 year labour
Enhanced warranty options
Interlock Restored, Restart ModeAutomatic
