PaintChecker Industrial Sensor

  • In-line coating thickness sensors, no contact
  • Laser, LED and high-power models
  • Cube-B now also with 75 mm optics

Try before you buy

Find out more

Extended warranty

Find out more

In-line measurement

On a production line, the parts to be measured may be moving or still wet or uncured, with several points to check on each one.

PaintChecker Industrial sensors from OptiSense measure without contact, from 16 mm to 100 mm away depending on the model. They are small and light enough to fix above a conveyor or mount on a robot. One PaintChecker Industrial Controller runs up to eight sensors, records every point at the same time and passes the results to the line PLC and QA systems.

Test my samples Request a quote

Three PaintChecker Industrial Cube sensors mounted above coated battery foil on a production line
PaintChecker Industrial Cube sensors measuring coated battery foil in line.

Sensors

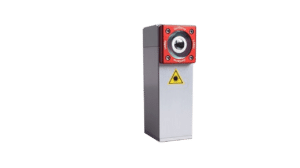

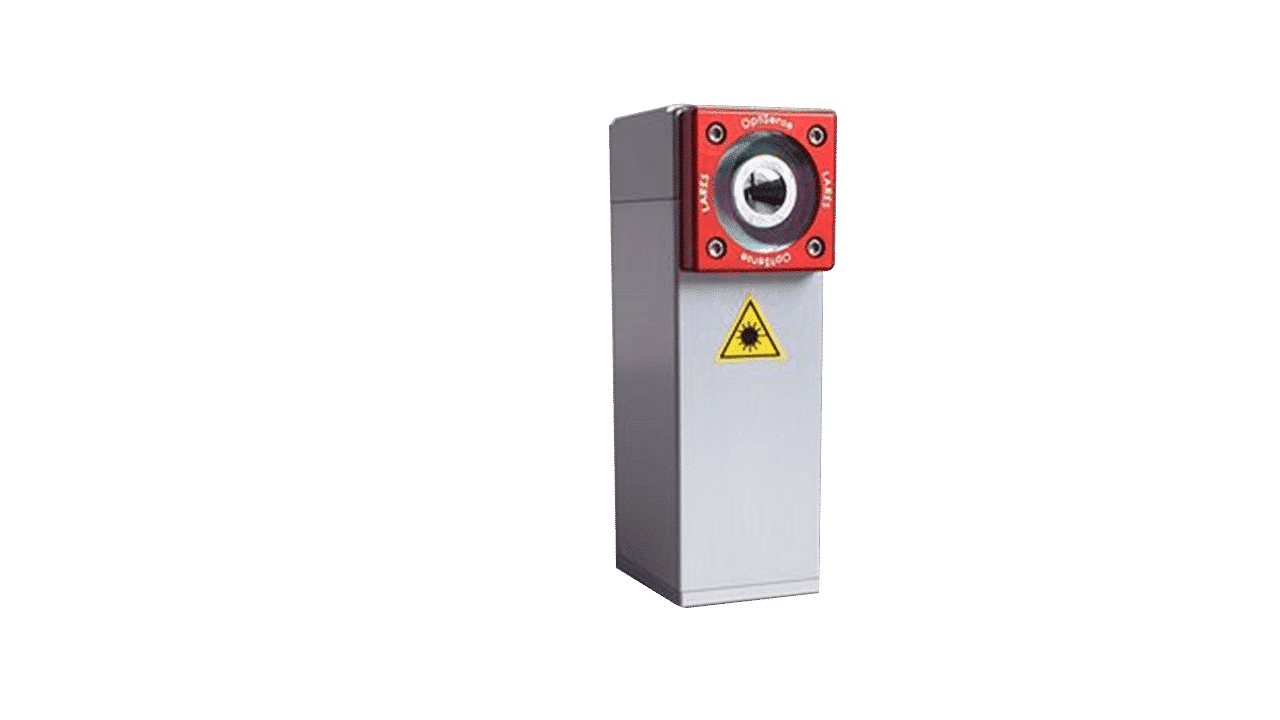

PaintChecker Industrial Angle laser sensor

Laser sensors

Angle and Tube sensors with a diode laser at 1470 nm and a measuring field of 0.2 or 0.3 mm, for small parts, including their corners and edges. The Angle sensor has folded optics and works 16 mm from the part, in the tightest spaces. The standard-power models are eye-safe, using OptiSense's patented LARES® technology.

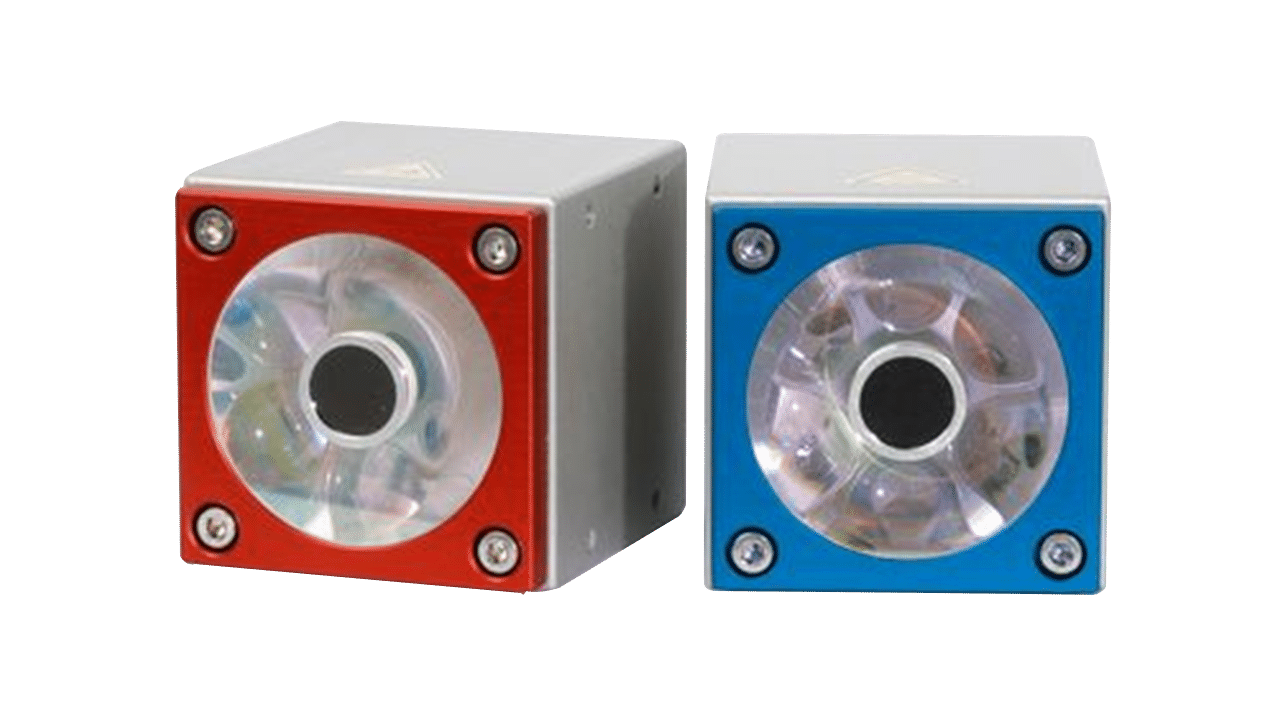

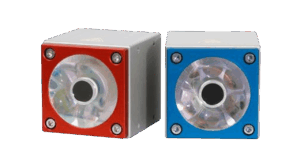

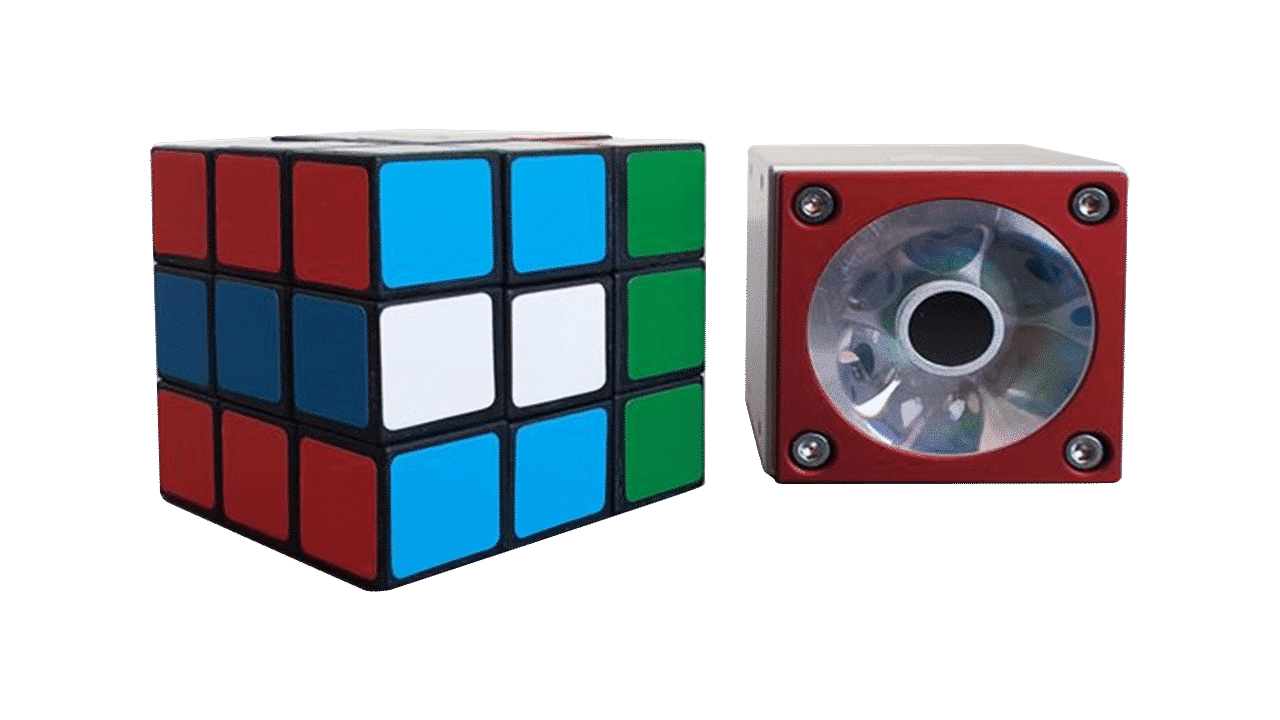

PaintChecker Industrial Cube-R and Cube-B LED sensors

LED sensors

Cube sensors with a larger measuring field, 1 mm on Cube-R and 2 mm on Cube-B, for rough, grainy surfaces such as powders and pastes, on metal and non-metallic substrates. Cube-R uses infrared excitation at 980 nm and Cube-B ultraviolet at 365 nm, chosen to suit the coating material. Both are eye-safe. Cube-B now also comes with 75 mm optics.

PaintChecker Industrial Tube laser sensor

High-power laser sensors

Higher output in the same housings, for thick layers with a high glass or metal content and for longer distances. Tube-LHP10 works 100 mm from the part with a ±5 mm tolerance, so precise part positioning is often unnecessary. High-power sensors are laser class 3R and are not rated eye-safe.

75 mm optics

The Cube-B LED sensor is now also available with 75 mm optics, in the familiar compact cube format. With the 75 mm optics, distance and angle tolerances of ±10 mm and ±20° leave more room for variation in part position, whether the sensor is fixed, held in a fixture or mounted on a robot. Rough and powdery surfaces are measured without contact. The 33 mm optics suit tight integration spaces, edges and smaller radii. Both use UV excitation at 365 nm and run on the LED-B version of the controller.

Cube-B optics compared. Manufacturer data: OptiSense GmbH & Co. KG. The measurement rate depends on measurement time and duty cycle.
33 mm optics75 mm optics
Working distance33 mm75 mm
Distance tolerance±3 mm±10 mm
Angle tolerance±15°±20°
Measurement spot diameter2 mm5 mm
Max. pulse energy (1 s)250 mJ750 mJ
Measurement time64–2048 ms64–2048 ms
Measurement ratemax. 15.6 Hzmax. 15.6 Hz
Size50 × 51.6 × 55 mm50 × 51 × 61.4 mm
Weight280 gapprox. 300 g
Best forTight integration spaces, edges and smaller radiiFixed or robotic integration; rough or powdery surfaces

Sensor selection

OptiSense rates each sensor against substrate, coating and the condition the coating is in when measured. Some combinations need an application-specific calibration, which OptiSense provides.

✓ = suitable. Source: OptiSense PaintChecker Industrial Sensors datasheet, version 23.01. Cube-B with 75 mm optics is not yet listed.
SubstrateCoatingConditionAngle LLP1.6Angle LHP1.6Tube LLP3.5Tube LHP3.5Tube LHP10Cube-RCube-B
MetalCDCdry✓✓✓✓
MetalPigmented paintwet / dry✓✓✓✓✓✓✓
MetalClear coatwet / powdered✓✓✓✓✓✓✓
MetalUV paintwet / cured✓✓✓✓✓✓✓
MetalZinc dustdry✓✓✓✓✓
MetalBonding agentwet / cured✓✓✓
MetalPowder coatingpowdered✓✓✓
MetalAdhesivewet / dry✓✓✓✓
MetalRubber coatingdry✓✓✓✓
RubberBonded coatingdry✓✓✓
RubberAdhesivewet / cured✓✓✓
CeramicPigmented paintdry✓✓✓✓
CeramicPowder slurrypre-dried✓✓✓✓
CeramicConductive pastepre-dried✓✓✓✓✓
GlassPigmented paintwet / dry✓✓✓✓✓✓✓
GlassBonding agentpre-dried✓✓✓✓✓
GlassConductive pastepre-dried✓✓✓✓✓
PlasticBonding agentwet / dry✓✓✓
PlasticLaser paintdry✓✓✓✓✓
PlasticClear coatwet / dry✓✓✓✓
PlasticPowder coatingpowdered✓✓✓
PlasticRubber coatingdry✓✓✓✓

How it works

PaintChecker uses a photothermal method. A short, intense light pulse warms the coating surface by a few degrees, then the heat flows into the layers beneath. A thin coating cools faster than a thick one. An infrared detector records the temperature curve from a distance. The difference in thermal properties between coating and substrate then gives the absolute thickness.

OptiSense specifies the measurement procedure to DIN EN 15042-2. For a handheld check of the same coatings, see PaintChecker Mobile.

PaintChecker Industrial Tube sensors above a moving coated surface, their measuring spots visible
Tube sensors measuring a coated surface as it passes beneath them.

Specifications

PaintChecker Industrial sensors, 33 mm optics on the Cube models. Source: OptiSense datasheet version 23.01, with the Cube-B figures as confirmed by OptiSense in October 2026.
Angle LLP1.6Angle LHP1.6Tube LLP3.5Tube LHP3.5Tube LHP10Cube-RCube-B
SensorLaser, angleLaser, angleLaser, tubeLaser, tubeLaser, tubeLED, cubeLED, cube
Measurement range1–1000 µm
Measurement ratemax. 2.5 Hzmax. 15.6 Hz
Measurement time125–1000 ms64–2048 ms
Resolution1% of reading (typical)
Accuracy3% of reading (typical)
Measuring distance16 mm16 mm35 mm35 mm100 mm33 mm33 mm
Distance tolerance±1 mm±1 mm±2.5 mm±2.5 mm±5 mm±3 mm±3 mm
Angular tolerance±15°
Measuring field0.2 mm0.2 mm0.3 mm0.3 mm0.5 mm1 mm2 mm
Optical power650 mJ1250 mJ650 mJ1250 mJ1250 mJ1150 mJ250 mJ
Wavelength1470 nm1470 nm1470 nm1470 nm1470 nm980 nm365 nm
Laser class / risk group1M3R1M3R3RRisk 1Risk 3
Eye-safeYesNoYesNoNoYesYes
Size87 × 28 × 41 mm87 × 28 × 41 mmØ30 × 102 mmØ30 × 102 mmØ30 × 102 mm50 × 51.6 × 55 mm50 × 51.6 × 55 mm
Weight180 g180 g150 g150 g150 g280 g280 g
ProtectionIP 50

Each sensor ships on its own, with the connecting cable as an accessory and a sensor holder available on request.

Common questions

Can the sensors measure wet or uncured coatings?

Yes. The measurement is contactless, so wet paint, powder before curing and pre-dried pastes are all read without touching them.

How many measuring points can run at once?

Up to eight. A PaintChecker Industrial Multi controller drives eight sensors of one series and records every point at the same time, so several parts or positions are measured without moving a sensor between them.

Which sensors are eye-safe?

The standard-power laser sensors, Angle LLP1.6 and Tube LLP3.5, use OptiSense's LARES® technology and are eye-safe, as are both Cube LED sensors. The high-power laser sensors, Angle LHP1.6, Tube LHP3.5 and Tube LHP10, are laser class 3R and are not rated eye-safe.

Can a sensor be mounted on a robot?

Yes. The sensors weigh from 150 g to about 300 g and are built for robot mounting, with a sensor holder available on request. The Cube-B with 75 mm optics adds a wider distance and angle tolerance for robotic setups.

Will my coating need its own calibration?

Some applications do. OptiSense creates application-specific calibrations as a service. Certified reference samples coated to a defined thickness are also available for checking the system in production.

Next step

Send us coated samples with the thickness range you need to control. We will test them and recommend the sensor and controller.

Test my samples

Request a quote

PaintChecker is made by OptiSense GmbH & Co. KG in Germany and supplied by Rhopoint Americas. Technical data come from the OptiSense PaintChecker Industrial Sensors datasheet (version 23.01) and the Cube-B 75 mm optics flyer (September 2026), as confirmed by OptiSense in October 2026. LARES is a registered trademark of OptiSense.
